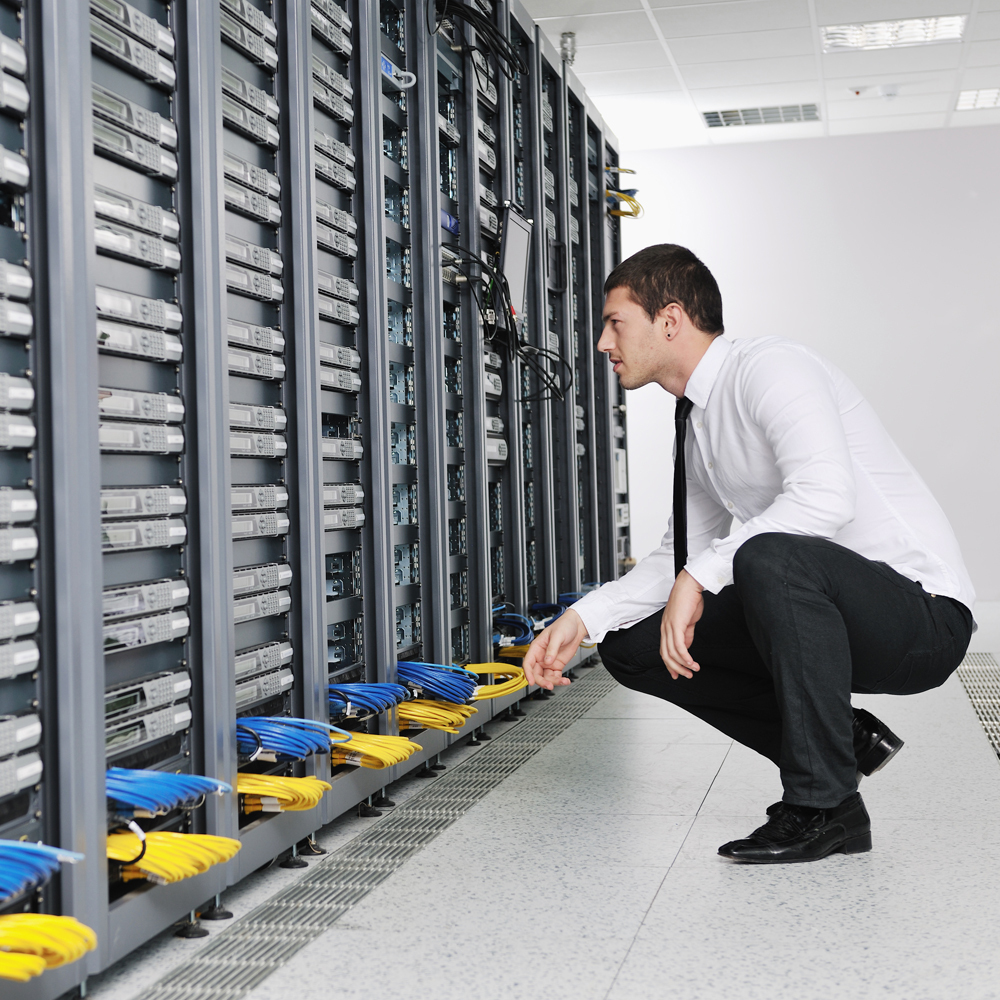

Proper installation of components in a data center server rack is crucial for optimal performance, efficient maintenance, and long-term reliability of your IT infrastructure. This guide provides detailed instructions and best practices for setting up various components in your data center racks.
1. Shelves Installation
Shelves are fundamental components in any data center rack, providing support for non-rack mountable equipment. Proper shelf installation is critical for equipment safety and rack stability.
Key Considerations:
- Weight Capacity: Select shelves that can adequately support the weight of your equipment. Always check the manufacturer's specifications and err on the side of caution.
- Level Installation: Ensure shelves are installed perfectly level to prevent equipment from sliding or tipping.
- Secure Fastening: Use all provided mounting points and appropriate hardware to securely fasten shelves to the rack.
- Distribution: Distribute heavy equipment across multiple shelves to balance the load within the rack.
Installation Steps:
- Identify the desired position for the shelf in the rack.
- Align the shelf with the rack's mounting holes.
- Insert and partially tighten all mounting screws.
- Use a level to ensure the shelf is perfectly horizontal.
- Fully tighten all screws to the manufacturer's recommended torque specifications.
2. Cable Management
Effective cable management is essential for maintaining order, facilitating airflow, and simplifying maintenance in your data center.
Best Practices:
- Use Cable Ties or Velcro Straps: Group cables together using ties or straps. Velcro straps are preferred for easier future modifications.
- Implement Cable Management Arms or Trays: These components keep cables organized and prevent tangling.
- Color Coding: Use different colored cables or labels for various systems (e.g., network, power, storage) to simplify identification.
- Proper Routing: Route cables to minimize bends and avoid blocking airflow to equipment.
- Length Management: Use appropriate cable lengths to avoid excess slack.
Advanced Cable Management:
- Consider using Snake Tray solutions like the Mega Snake and Snake Canyon for optimized cable pathways and overhead conveyance.
- Implement a structured cabling system following TIA-942 standards for improved organization and scalability.
- Utilize fiber optic cables for high-speed connectivity between racks or to support edge computing initiatives.
3. Rail Installation
Proper rail installation is critical for securely mounting servers and other rack-mountable equipment.
Key Points:
- Use model-specific rails designed for your particular server or equipment.
- Ensure rails are level and properly aligned on both sides of the rack.
- Follow manufacturer instructions meticulously, as incorrect installation can lead to equipment damage or failure.
Installation Steps:
- Identify the correct mounting holes for your equipment size (e.g., 1U, 2U, 4U).
- Attach inner rail sections to the equipment if required.
- Install outer rail sections to the rack, ensuring they are level and at the same height on both sides.
- Slide the equipment into the rails, checking for smooth operation and proper locking mechanisms.
4. Use of Loctite (Thread-Locking Adhesive)
Loctite or similar thread-locking adhesives can prevent screws from loosening due to vibration, especially in areas prone to movement.
Guidelines:
- Apply thread-locking adhesive sparingly to critical mounting screws.
- Use a medium-strength formula to allow for future disassembly if needed.
- Be cautious not to apply adhesive to areas that may require frequent access.
5. General Installation Guidelines
Equipment Placement:
- Install heavy equipment at the bottom of the rack for stability.
- Maintain adequate spacing between components for proper airflow and heat dissipation.
- Consider future expansion when planning equipment placement.
Labeling and Documentation:
- Implement a comprehensive labeling system for all equipment, cables, and ports.
- Maintain up-to-date documentation of rack layouts and cable connections.
- Use asset management software to track equipment locations and specifications.
Power Distribution and Grounding:
- Ensure proper grounding of all racks and equipment.
- Use server rack grounding kits and follow data rack grounding standards.
- Implement redundant power supplies and distribute equipment across multiple power circuits for fault tolerance.
- Consult the National Electrical Code (NEC) for electrical safety guidelines.
Airflow Management:
- Arrange equipment to create hot and cold aisles for efficient cooling.
- Use blanking panels to cover empty rack spaces and prevent air recirculation.
- Consider installing containment systems (e.g., aisle containment) for improved cooling efficiency.
6. Advanced Considerations
Multi-Tenant and Hyperscale Environments:
- Design flexible cabling solutions to accommodate diverse tenant requirements.
- Implement scalable infrastructure to support rapid growth and changes.
Hybrid Data Center Strategies:
- Plan for integration with cloud services and edge computing nodes.
- Ensure network infrastructure can support hybrid workloads and data transfer requirements.
Compliance and Standards:
- Adhere to industry standards such as TIA-942 for telecommunications infrastructure.
- Ensure compliance with relevant regulations (e.g., GDPR, HIPAA) in your rack and cabling design.
Proper installation of components in a data center server rack is a complex but crucial process. While it may add to initial data center construction costs, meticulous setup mitigates future operational issues and simplifies ongoing maintenance. Always adhere to manufacturer guidelines, follow industry best practices, and consult professional assistance when necessary. Regular audits and updates to your rack infrastructure will ensure optimal performance and longevity of your data center operations.
